1030nm
Mirrors
Non-Polarizing Beamsplitter
Separator
Thin Film Polarizer
Window
Mirrors
Turning Mirror [ Coating on Ag +Multilayer, Angle of Incidence=22.5-45°, Polarisation : s,p-Pol. HRs,p ( 22.5-45°, 1030nm) > 99.7% ]
 |

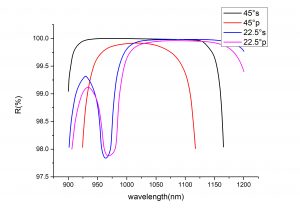

| Reflection Spectrum |
Turning Mirror [ Angle of Incidence=45°, Polarisation:s,p-Pol. HRs,p ( 45°, 1030 nm) > 99.95% ]
 |

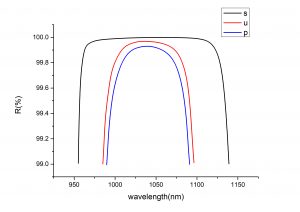

| Reflection Spectrum |
Turning Mirror [ Angle of Incidence=45°, Polarisation:Unpol. HRu ( 45°, 1030 nm) > 99.9% ]
 |
| Reflection Spectrum |

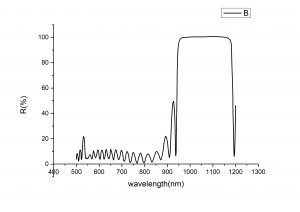

Laser Mirror[ Angle of Incidence=0°, Polarisation:s,p-Pol. HRs,p ( 0-10°, 1030 nm) > 99.95% ]
 |
 |

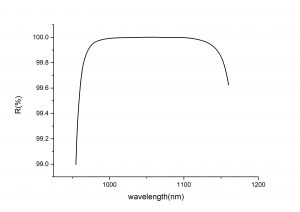

| Reflection Spectrum | |
Non-Polarizing Beamsplitter
S1: Angle of Incidence = 45°, Polarisation : s,p-Pol. ARs,p ( 45°, 1030 nm) < 0.7%, |Rs-Rp|<0.2%
S2: Angle of Incidence = 45°, Polarisation : s,p-Pol. PRs,p ( 45°, 1030 nm) =50 (±3)%, |Rs-Rp|<4%
 |
 |

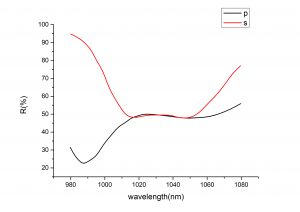

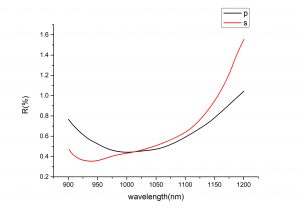

| Reflection Spectrum [S1] | Reflection Spectrum [S2] |
Separator
Separator [Angle of Incidence= 45°, Polarisation : s,p-Pol ]
S1: ARs,p (45°, 1030nm) <0.7%
S2:Rs (45°, 1030nm)<5%, Rp (45°, 1030nm)<2%
 |

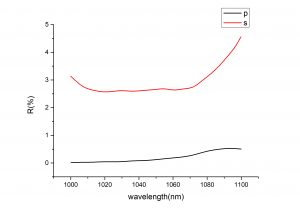

| Reflection Spectrum [S2] |
Separator [Angle of Incidence= 45°, Polarisation : s,p-Pol. HRs,p(45°, 1030nm)>99.9% ]
 |

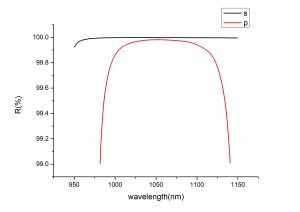

| Reflection Spectrum |
Separator [Angle of Incidence= 45°, Polarisation : p-Pol ]
S1:ARp(45°, 1030nm)<0.5%
S2:Rp(45°, 1030nm) <2%
 |

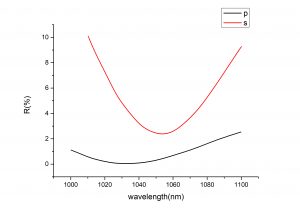

| Reflection Spectrum [S2] |
Separator [Angle of Incidence= 45°, Polarisation : s-Pol ]
S1:ARs(45°, 1030nm)<0.2%
S2:Rs(45°, 1030nm) <1%
 |

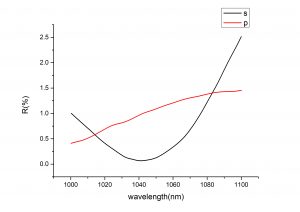

| Reflection Spectrum [S2] |
Thin Film Polarizer
Angle of Incidence= 56°, Polarisation : s,p-Pol
S1: Uncoted; Brewster angle, Rp(56°)~0%
S2: TFP(56°, 1030nm) Rs>99.9%, Rp<2%
 |

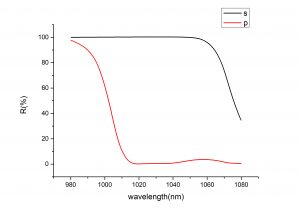

| Reflection Spectrum [S2] |

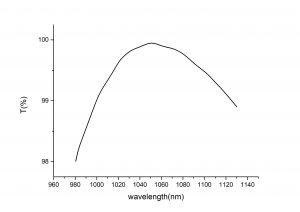

Window
Angle of Incidence=0°, Polarisation : unpol. AR (0°,1030nm)<0.3%
 |
| Transmission Spectrum |
515nm
Mirrors
Non-Polarizing Beamsplitter
Separator
Thin Film Polarizer
Window
Mirrors
Turning Mirror [ Coating on Ag +Multilayer, Angle of Incidence=22.5-45°, Polarisation : s,p-Pol. HRs,p ( 22.5-45°, 515 nm) > 99.7% ]
 |

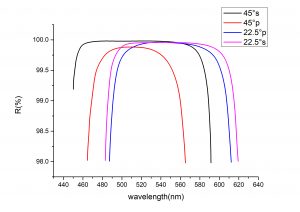

| Reflection Spectrum |
Turning Mirror [ Angle of Incidence=45°, Polarisation:s,p-Pol. HRs,p ( 45°, 515 nm) > 99.9% ]
 |

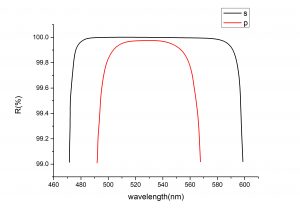

| Reflection Spectrum |
Turning Mirror [ Angle of Incidence=45°, Polarisation:Unpol. HRu ( 45°, 515 nm) > 99.8% ]
 |
| Reflection Spectrum |
Non-Polarizing Beamsplitter
S1: Angle of Incidence = 45°, Polarisation : s,p-Pol. ARs,p ( 45°, 515 nm) < 0.7%, |Rs-Rp|<0.2%
S2: Angle of Incidence = 45°, Polarisation : s,p-Pol. PRs,p ( 45°, 515 nm) =50 (±3)%, |Rs-Rp|<4%
 |
 |

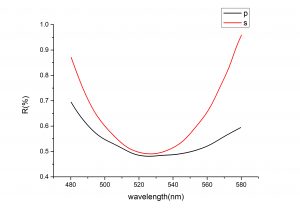

| Reflection Spectrum [S1] | Reflection Spectrum [S2] |
Separator
Separator [Angle of Incidence= 45°, Polarisation : s,p-Pol. HRs,p (45°, 515nm)>99.8%]
 |
| Reflection Spectrum |
Separator [ Angle of Incidence= 45°, Polarisation : s,p-Pol ]
S1: ARs,p (45°, 515nm) <0.7%, |Rs-Rp|<0.2%
S2:Rs,p (45°, 515nm)<3%
 |

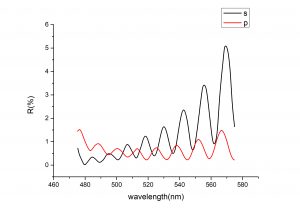

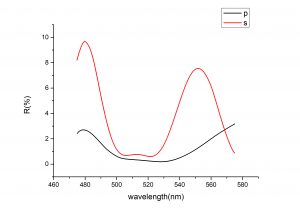

| Reflection Spectrum [S2] |
Separator [Angle of Incidence= 45°, Polarisation : s-Pol ]
S1:ARs(45°, 515nm)<0.5%
S2:Rs(45°, 515nm) <3%
 |
| Reflection Spectrum [S2] |
Separator [Angle of Incidence= 45°, Polarisation : p-Pol ]
S1:ARp(45°, 515nm)<0.3%
S2:Rp(45°, 515nm) <1%
 |

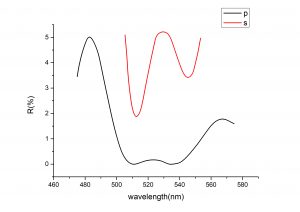

| Reflection Spectrum [S2] |
Thin Film Polarizer
Angle of Incidence= 56°, Polarisation : s,p-Pol
S1: Uncoted; Brewster angle, Rp(56°)~0%
S2: TFP(56°, 515nm) Rs>99.9%, Rp<2%
 |

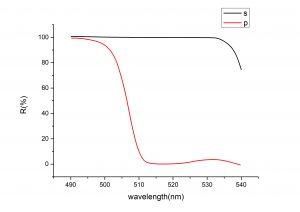

| Reflection Spectrum [S2] |
Window
Angle of Incidence=0°, Polarisation : unpol. AR (0°, 515nm)<0.5%
 |

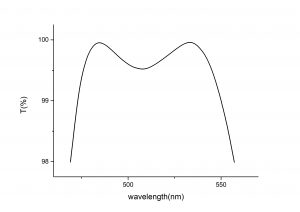

| Transmission Spectrum |
343nm
Turning Mirror [ Angle of Incidence=45°, Polarisation:Unpol. HRu ( 45°, 343 nm )> 99.4% ]
 |

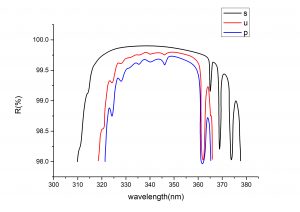

| Reflection Spectrum |
Separator
Separator [Angle of Incidence= 45°, Polarisation : p-Pol. HRp (45°,343nm) >99.0%]
 |

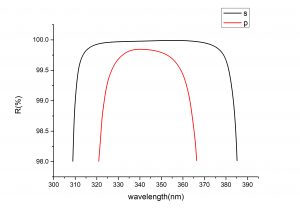

| Reflection Spectrum |
Separator [Angle of Incidence= 45°, Polarisation : s-Pol. HRs (45°,343nm) >99.9%]
 |

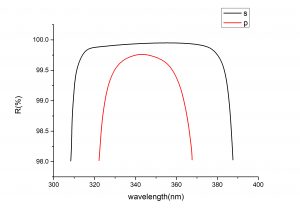

| Reflection Spectrum |
