Description
| Material | Infrasil 302 |
| Geometry | ∅ = 12.7 mm (-0.1 mm) t = 6.35 mm (±0.1 mm) |
| Form | Front Side (S2) concave r = 1,000 mm (±1 %) Rear Side (S1) plane |

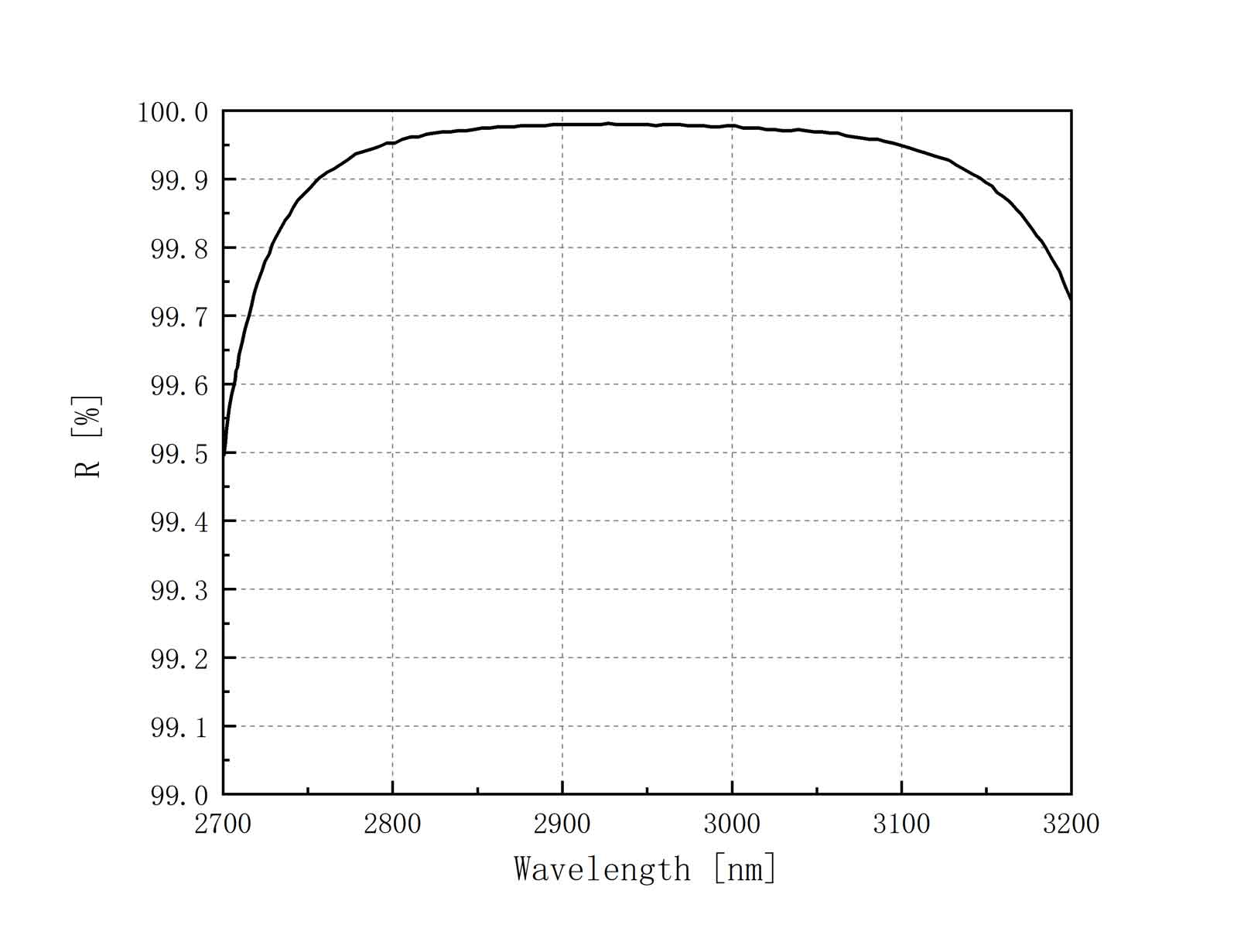

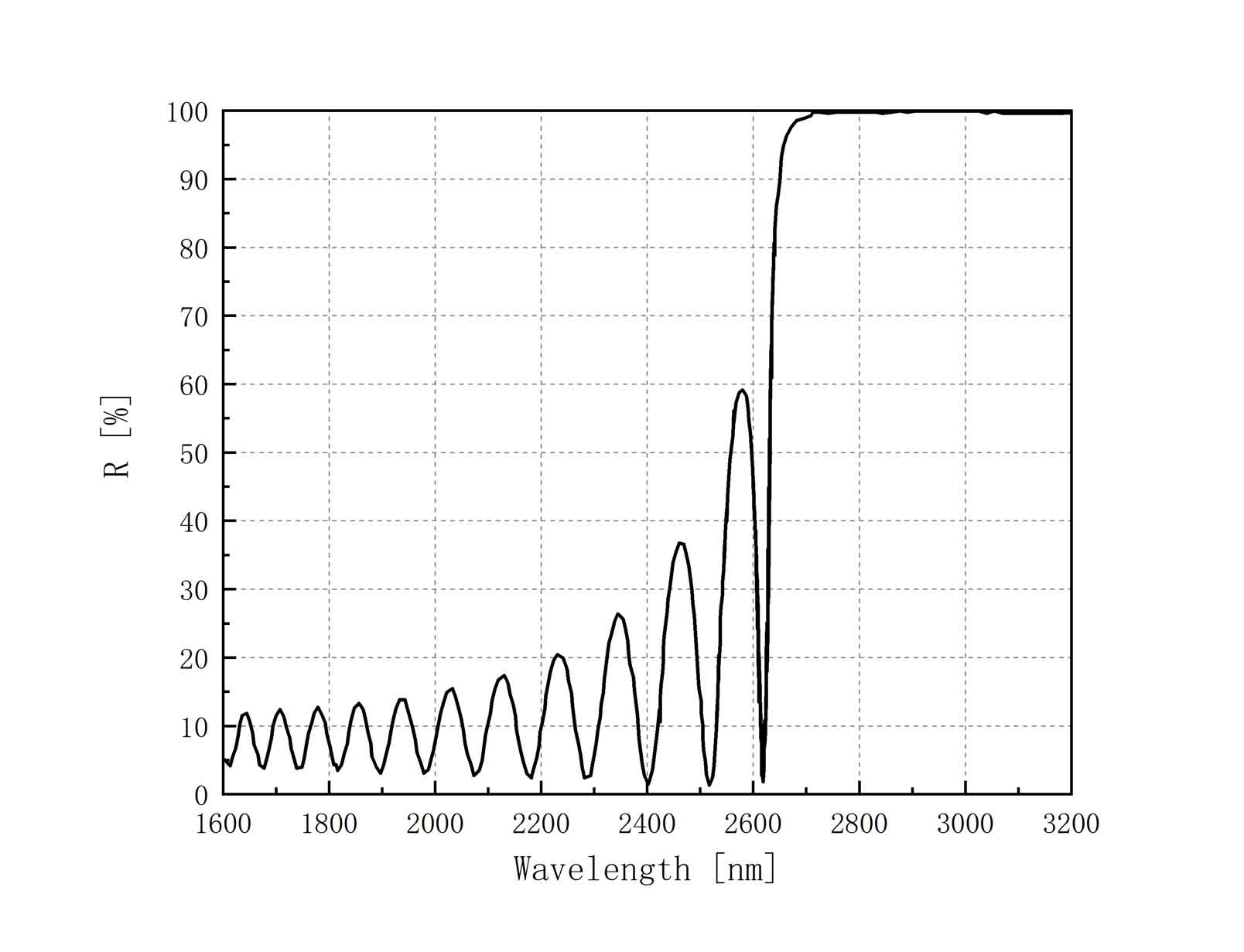

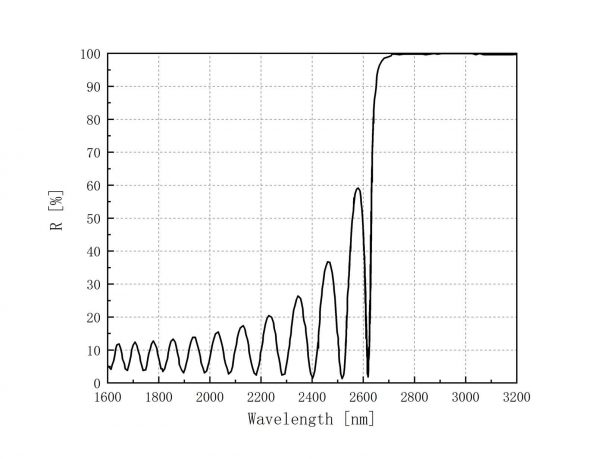

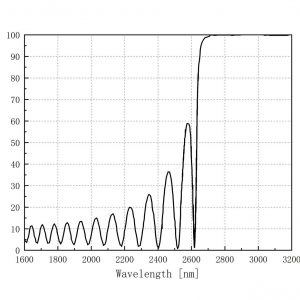

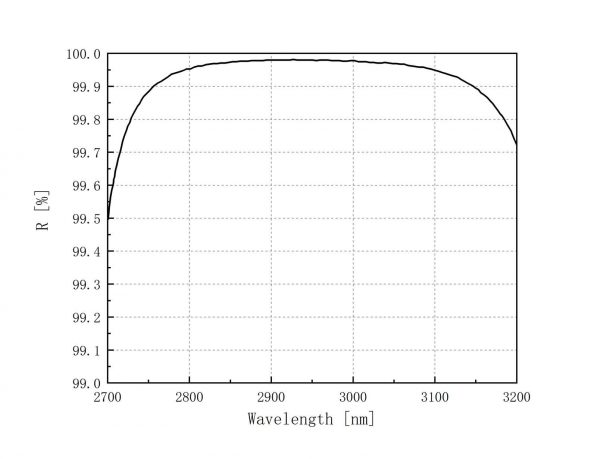

| Coating | Front Side (S2) HR(0°,2940nm)>99.8% |
| Application | cw/ns |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Er:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
| Optical element/ | Laser mirror |
