Laser window 108497

Category: Laser window

Description

material	Corning 7980 2F or equal
Geometry	∅ = 50 mm t = 9.5 mm
Form	Front Side (S2) plane Rear Side (S1) plane

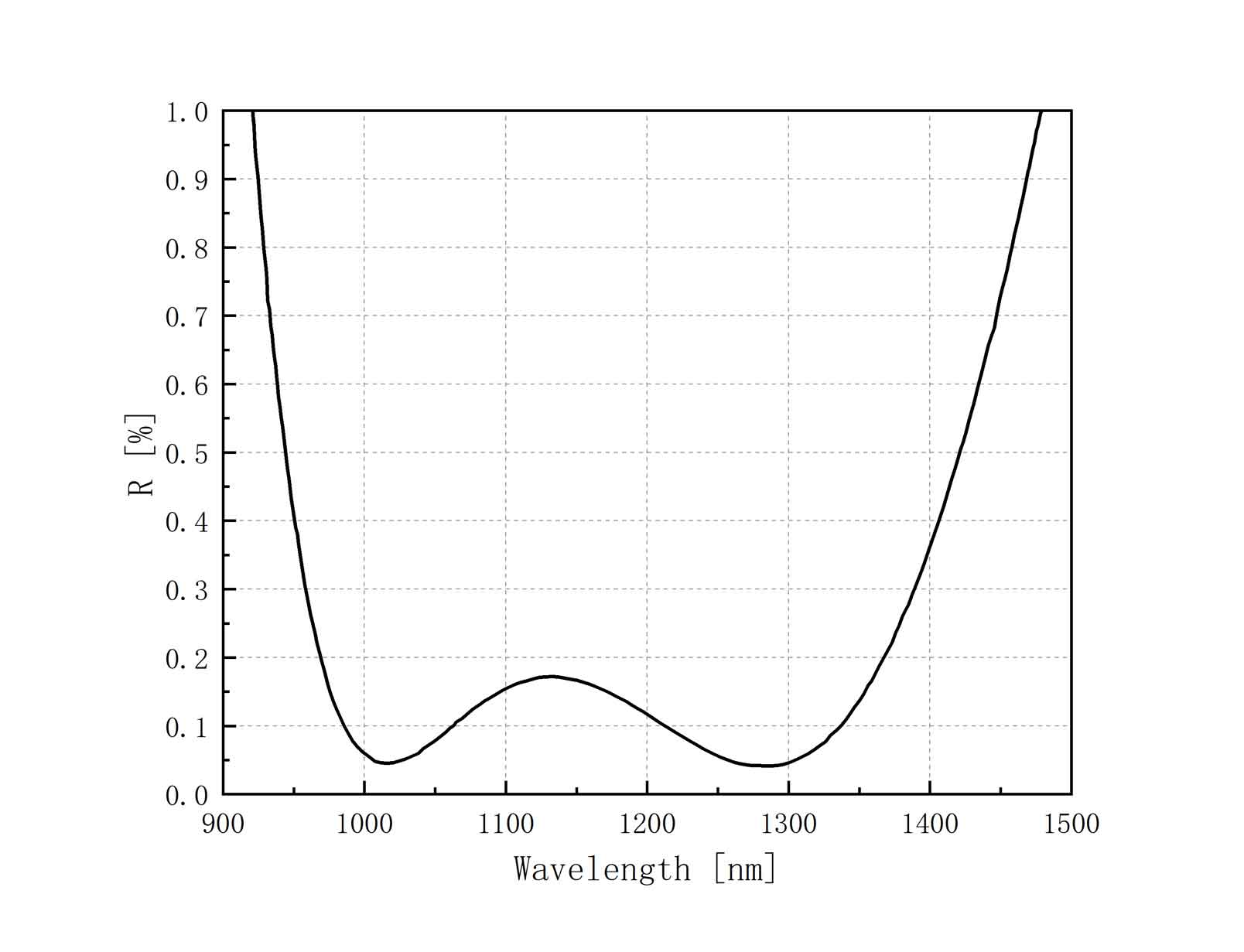

Coating	Front Side (S2) AR(0°,1000-1300nm)<0.5% Rear Side (S1) AR(0°,1000-1300nm)<0.5%
application	cw/ns
optical element	Laser window
Shape	Round
Parallelism	5ʹ
type	Nd:YAG-Laser
Chamfer	Front Side (S2) 0.5 mm (±0.1 mm) Rear Side (S1) 0.5 mm (±0.1 mm)
