Description
| Material | FS Excimer Grade 248nm |
| Geometry | ∅ = 25 mm (-0.1 mm) t = 3.05 mm (±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

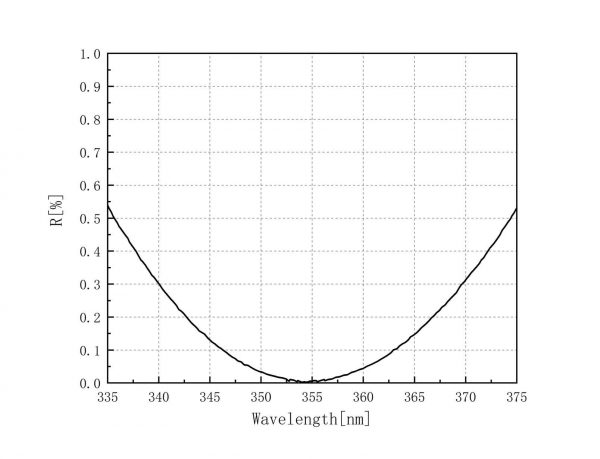

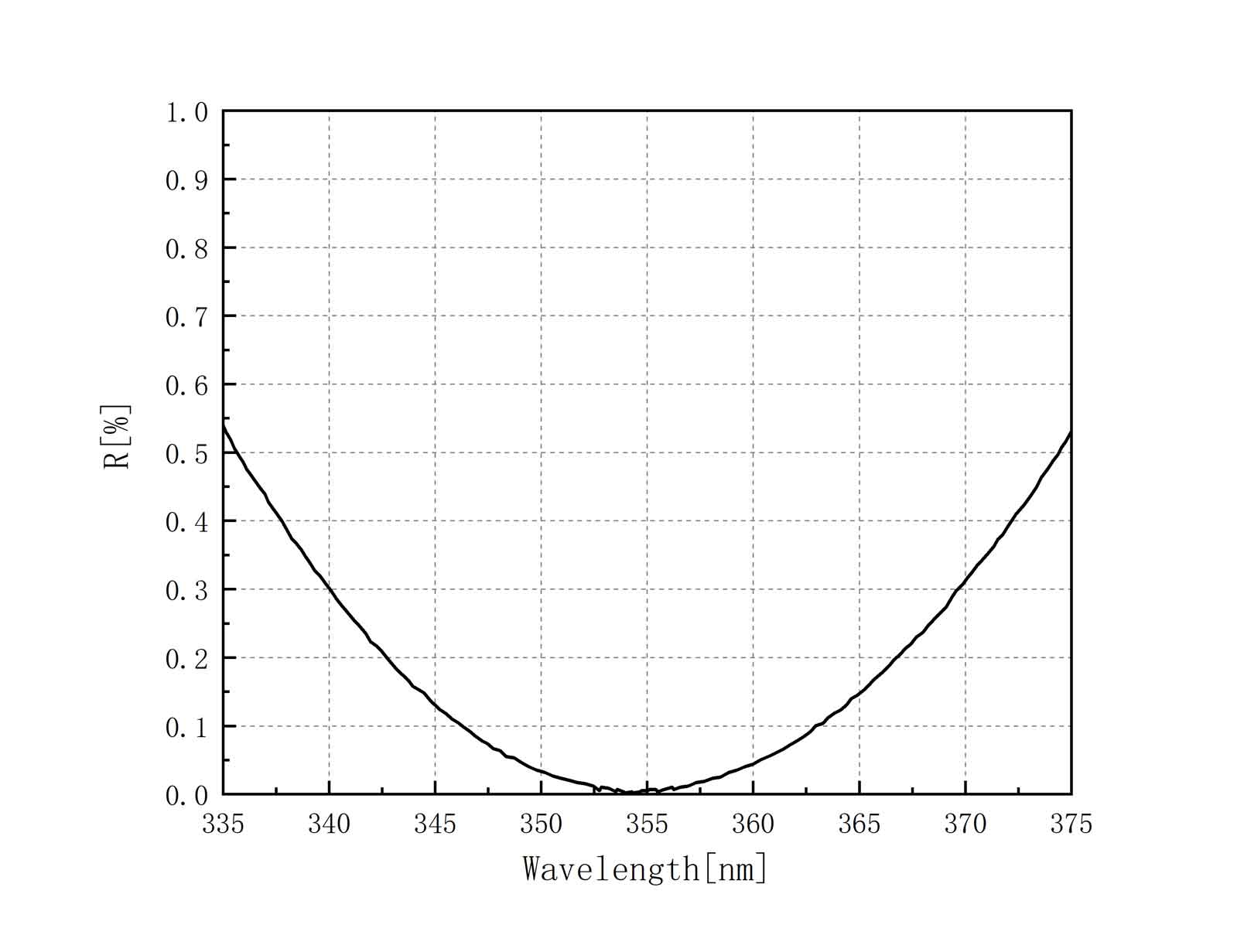

| Coating | Front Side (S2) AR(0°,355nm)<0.15% Rear Side (S1) AR(0°,355nm)<0.15% |
| Application | cw/ns/ps/fs |
| Optical element | Laser window |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
