Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ =25mm t =6.35mm |
| Form | Front Side (S2) plane Rear Side (S1) plane ′ |

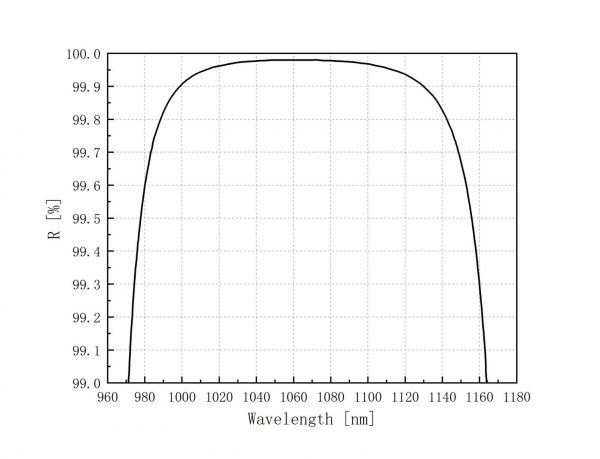

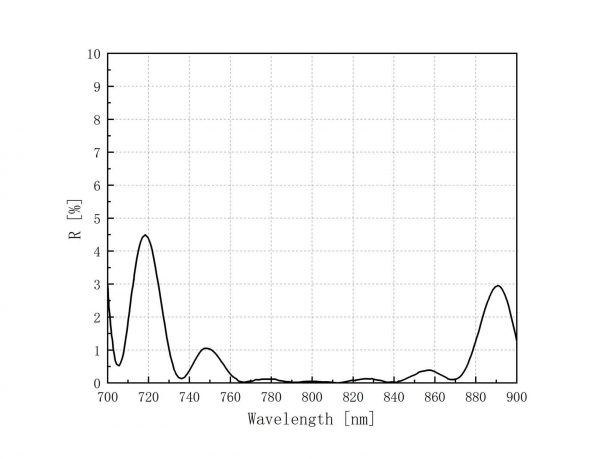

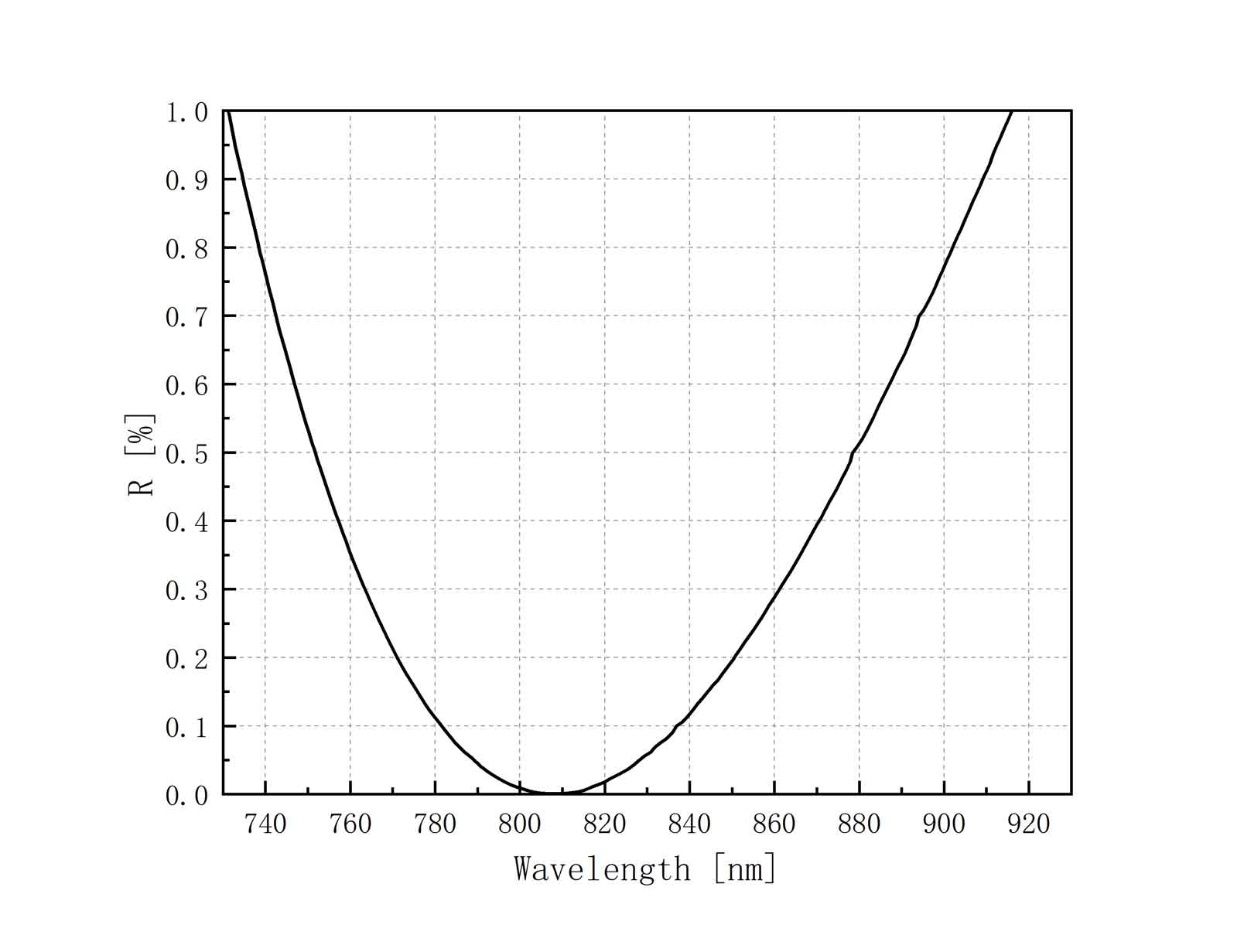

| Coating | Front Side (S2) HR(0°,1064nm)>99.9% R(0°,808nm)<3% Rear Side (S1) |
| application | cw/ns |
| optical element | Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm(±0.1 mm) Rear Side (S1) 0.3 mm(±0.1 mm) |
