Description
| material | YAG Undoped Optical grade |
| Geometry | ∅ = 25mm t = 3 mm |
| Form | Front Side (S2) plane Rear Side (S1) plane |

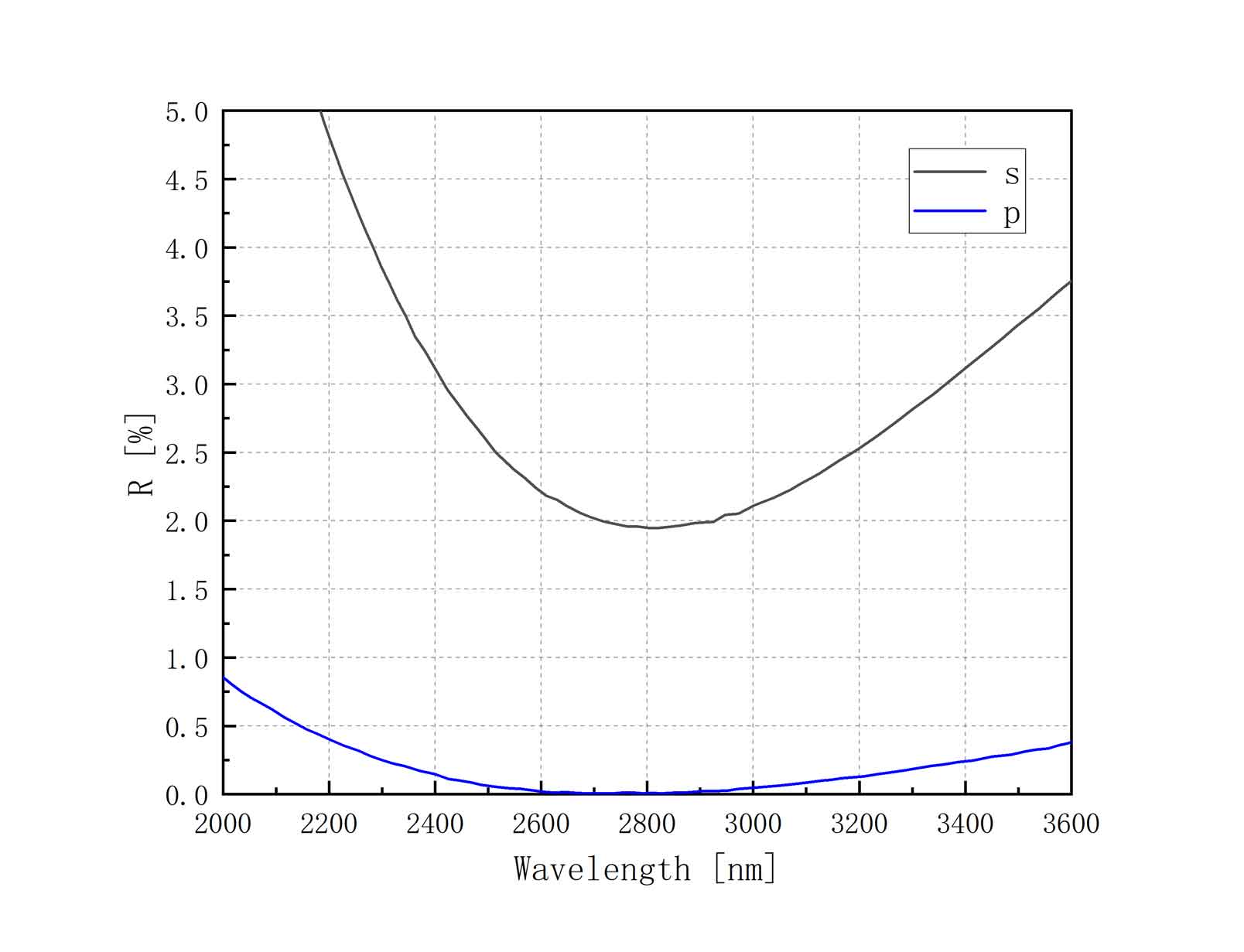

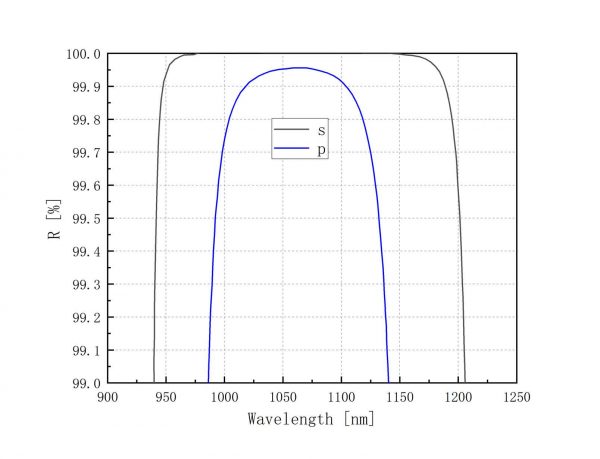

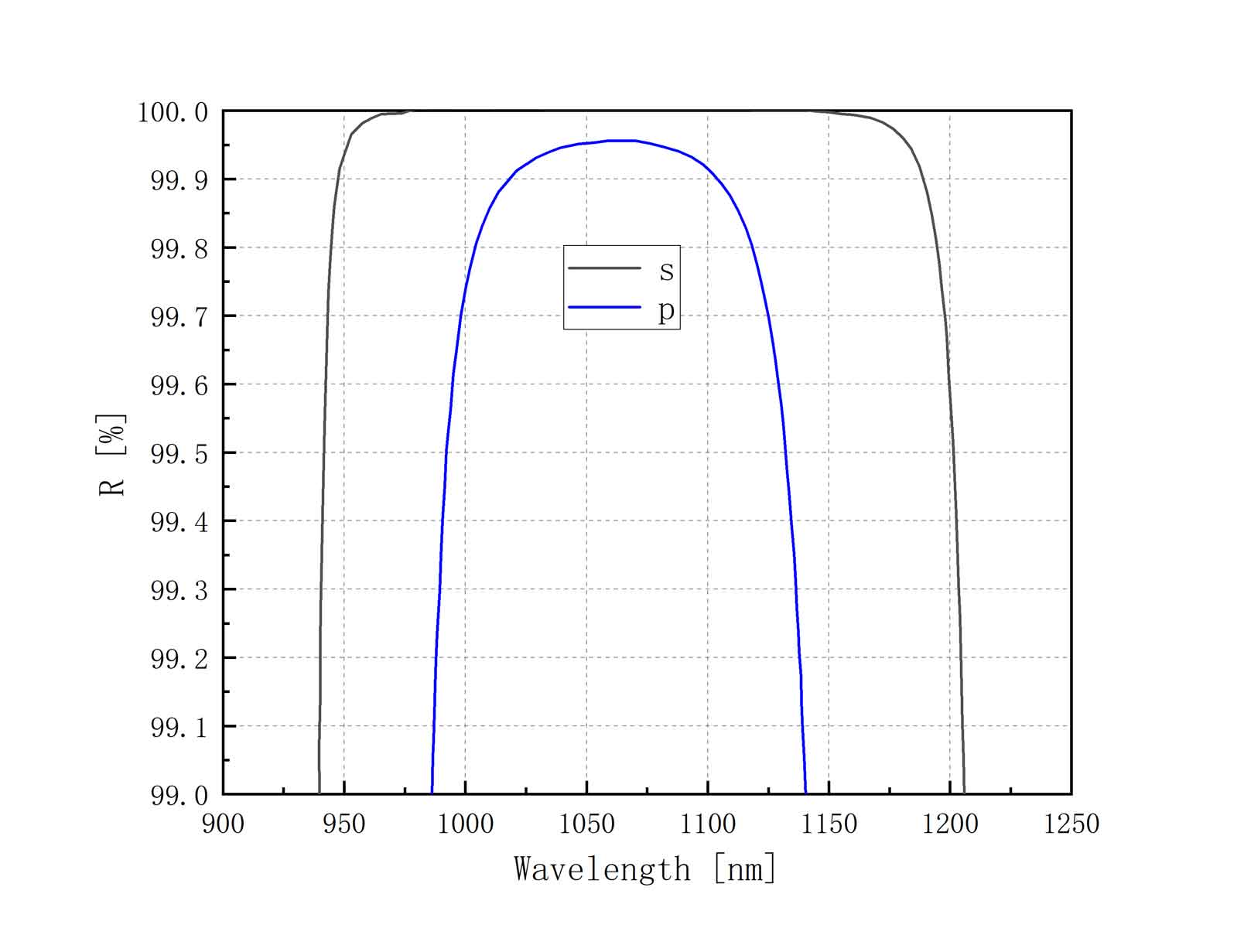

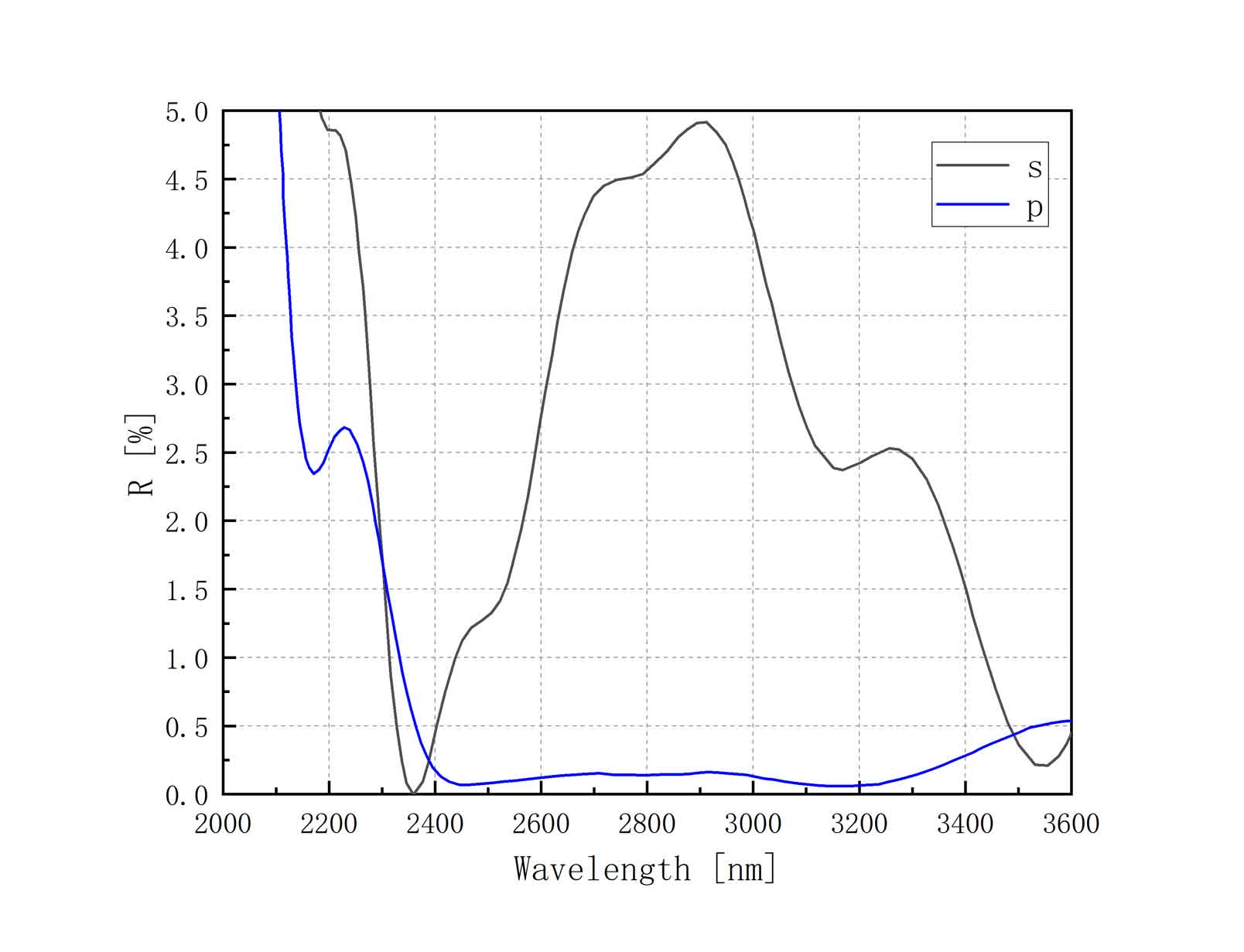

| Coating | Front Side (S2) HRs,p(45°,1064nm)>99.9% Rp(45°,2400-3000nm)<3% Rear Side (S1) ARp(45°,2400-3000nm)<0.5% |
| application | cw/ns |
| optical element | Separator Combiner |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2 mm (±0.1 mm) Rear Side (S1) 0.2 mm (±0.1 mm) |
